Defibtech Lifeline View DDU-2300

Defibtech Lifeline View DDU-2300 Features

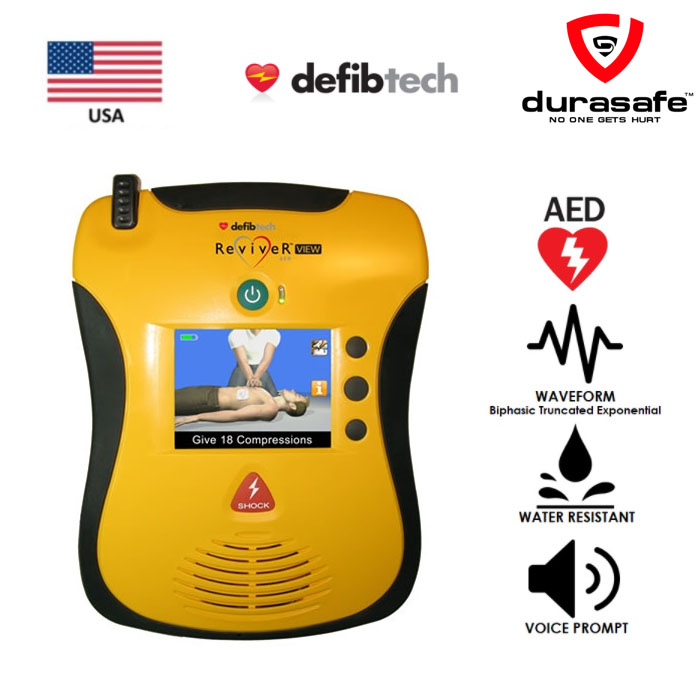

The Defibtech Lifeline View DDU 2300 is a semi-automatic external defibrillator. The Defibtech Lifeline View comes with a color display screen, showing step-by-step guidance for performing CPR with visual and voice instructions. Additional features on the AED include an option to switch between compression-only CPR and both compression and rescue breathing. The Defibtech Lifeline View runs extensive self-testing daily to make sure that everything is working properly and ready. It’s compact, portable, and lightweight with a rugged design to withstand demanding environments.

• Videos with corresponding text and voice instructions.
• Counts beats during the CPR period.
• Frequent and automatic self-tests: Daily, weekly, monthly, and quarterly.
• Non-escalation Biphasic Waveform: Adult 150 Joules; Child / Infant: 50 Joules.
• Durable: 1.2 meter drop tested.
• Dust protected, spray and water resistant (rated IP55).
• Lightweight: Less than 3 pounds.

Defibtech Lifeline View DDU-2300 Specifications

Dimensions

• Height: 9.5” (24 cm)
• Width: 7.3” (18.5 cm)
• Depth: 2.3” (5.8 cm)
• Weight: 3 lbs (1.4 kg)

Defibrillator

• Type: Semi-automatic external defibrillator
• Model: DDU-2300
• Waveform: Biphasic Truncated Exponential (Impedance compensated)
• Energy: Adult: 150 Joules; Child / Infant: 50 Joules (Nominal into 50 Ohm load)
• Controls: Lighted On/Off button; Lighted Shock button
• Charge Time: Less than 4 seconds (from shock advised)
• Display: High-resolution color LCD
• Video Prompts: Full motion video; On-screen text prompts
• CPR Coaching: Video and voice coaching; On-demand video help
• Voice Prompts: Extensive voice prompts guide user through operation of the unit
• Rescue Protocol: AHA/ERC (default); supports protocol updates by the user (password protected)

Patient Analysis System

• Patient Analysis: Automatically evaluates patient impedance for proper pad contact. Monitors signal quality and analyzes patient ECG for shockable / non-shockable rhythms.
• Sensitivity / Specificity: Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendations

Battery Pack

• Model: DBP-2003 (standard); DBP-2013 (aviation; TSO C-142a)
• Power: 12V, 2800 mAh
• Type: Lithium/Manganese Dioxide Disposable, recyclable, non-rechargeable
• Capacity: 125 shocks or 8 hours continuous operation
• Standby Life: 4 years
• Low Battery Indicators: Visible; Audible

Self Tests

• Automatic: Automatic daily, weekly, monthly and quarterly circuitry tests
• Battery Insertion: System integrity test on battery insertion
• Pad Presence: Pads preconnected tested daily
• User-Initiated: Unit and battery pack system test initiated by the user
• Status Indication: Visual and audible indication of unit status
• Status Screen: Unit self-test results Pads and battery information (status and expiration)
